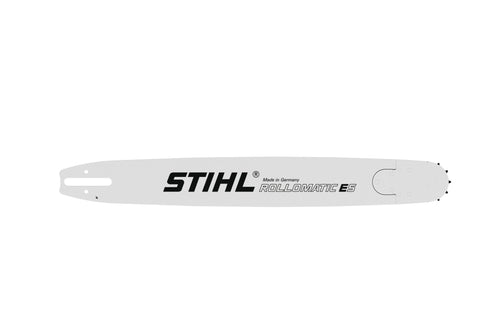

STIHL Rollomatic ES Guide Bar, .404" .063", 41" (3002 Tail)

The STIHL ROLLOMATIC E Super guide bar is a solid-machined bar made of high-grade steel with the groove milled out and a replaceable sprocket nose assembly riveted in place. The sprocket is incorporated in the replaceable sprocket nose assembly of the bar and carries the saw chain from the top to the bottom of the bar.

This not only reduces wear, but also enables the bar nose to be made considerably narrower. This type of construction is an advantage where extensive use is made of the bar nose (i.e. limbing and boring). All STIHL ROLLOMATIC bars designed with a narrow nose help reduce kickback tendencies. And the sprocket nose assembly can be replaced several times before the whole bar is due for replacement, increasing the service life of the bar.

Applications: For high-performance professional woodcutting with high-powered, heavy-duty saws. Available from 16" to 59". STIHL recommends using low-kickback, green-labeled chain and green-labeled reduced-kickback bars on all powerheads. Note: The actual listed guide bar length can vary from the effective cutting length based on which powerhead it is installed on.

Specifications

• Bar length: 41"
• Pitch: .404"
• Gauge: .063"
• Sprocket nose: 12 teeth
• Bar tail (mount): 3002
• Bar weight: 7.1 lb
• STIHL part number: 3002 000 9757
