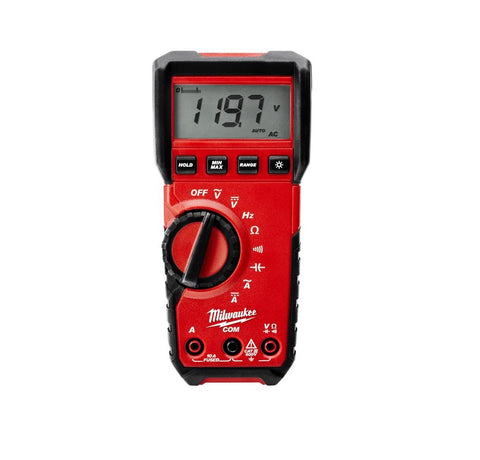

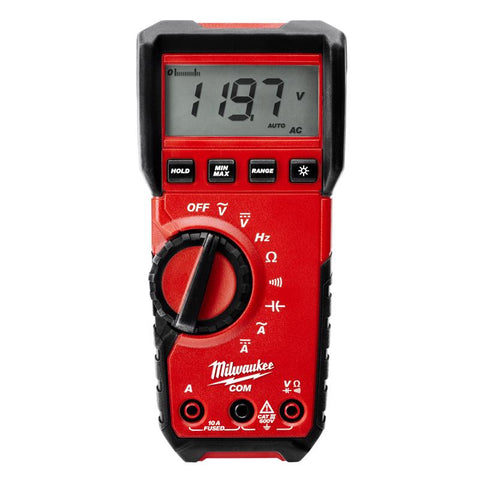

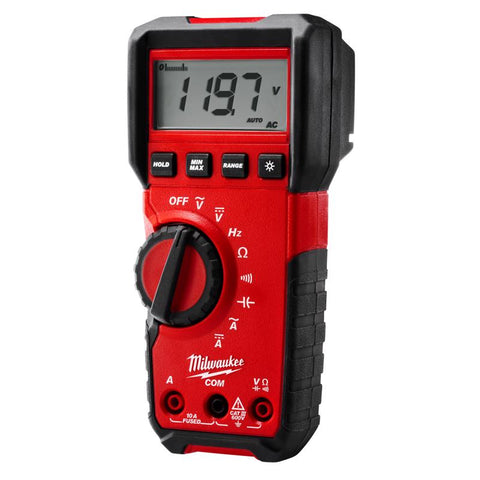

Milwaukee Digital Multimeter, Red

The Milwaukee Heavy duty True-RMS meter for professional residential, commercial and industrial applications. The perfect tool for the professional commercial or industrial electrician, includes the features that are needed to get the job done in the field, on-site or in the plant. Milwaukee 2216-20 Digital Multimeter features - True RMS measurement to accurately measure all applications, CATIII 600V for increased safety in demanding electrical environments, AC voltage range of 6 millivolts to 600 volts, DC voltage range of 600 millivolts to 600 volts DC, Resistance measurement from 600 ohms to 40 Mohm, frequency measurement from 10Hz to 50 kilohertz, detects continuity at less than 30 ohms, Current measurement to 10amps AC/DC, hold function, min/max function and digital bar graph readout, black on white display and backlight for easier reading, rugged over-molding for improved durability and user grip, proprietary rail system for mounting accessories, includes one 1 test lead set, two 2 AA batteries.

Key Features

• Light weight and easily portable
• Freezes the displayed reading for easy viewing
• Proprietary rail system - allows for mounting accessories
• Records the minimum and maximum readings over a period
• Color : Red
• Display Type : Digital
• Battery Size : AA
• Height : 6.5 inch
• Accessory Attachment : Magnetic Meter Holder
• Current AC DC : 10.00A
• Frequency : 2.00 Hz - 50.00 kHz
• Resistance : 40MO
• Safety Category Rating : CAT III 600V
• Switch Type : Dial
• Automatic Ranging
• Audible Alert
• Data Hold
• Backlight
• Bargraph
• Rugged Overmolding
• True-RMS for accurate measurement in all applications
• Resistance range from 600 ohm to 40 Mohm
• Rugged over-molding increases durability and user grip
• Auto range to mV

Specifications

• Brand Name: Milwaukee
• Display Type: Digital
• Product Type: Multimeter
• Number in Package: 1 pk
• Width: 6.05 in.
• Automatic Ranging: Yes
• Color: Red
• Automatic Delay Shutoff: No
• Audible Alert: Yes
• Battery Size: AA
• Data Hold: Yes
• Batteries Included: No
• Height: 2.7 in.
• Accessory Attachment: Magnetic Meter Holder
• Voltage DC: 600.0mV - 600V
• Length: 10.55 in.
• Vendor Internet Sales Policy: Sale of this product on third-party online marketplaces (eg. Amazon, eBay, Walmart) is prohibited.
• Voltage AC: 6.00mV - 600V
• Current AC DC: 10.00A
• Frequency: 2.00 Hz - 50.00 kHz
• Resistance: 40MO
• Safety Category Rating: CAT III 600V
• Switch Type: Dial
• Brand: Milwaukee
• Model / Part Number: 2216-20
